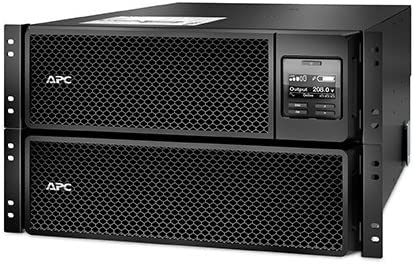

APC SRT8KRMXLT Smart Ups SRT 8000VA RM 208V
Vendor: APC
BRAND NEW, FACTORY SEALED!! Product details Rack Mountable · On-line · With Display · Hot Swappable Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light...
Available
BRAND NEW, FACTORY SEALED!!
Product details
Rack Mountable · On-line · With Display · Hot Swappable
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-.
| General | |
|
Device Type
|
UPS - rack-mountable |
|
Height (Rack Units)
|
6U |
|
Color
|
Black |
| Power Device | |
|
UPS Technology
|
On-line |
|
Input Voltage
|
AC 208 V |
|
Input Voltage Range
|
AC 160 - 275 V |
|
Input Voltage Range (Adjustable)
|
AC 100 - 275 V |
|
Frequency Provided
|
50/60 Hz ± 3Hz |
|
Frequency Required
|
45 - 70 Hz |
|
Input Connectors
|
Hardwire 3-wire (2PH + G) |
|
Power Output Connectors Details
|
1 x hardwire 3-wire (2PH + G) 4 x power NEMA L6-20 2 x power NEMA L6-30 |
|
Output Voltage
|
AC 208 V 50/60 Hz |
|
Power Capacity
|
8000 Watt / 8000 VA |
|
Output Waveform
|
Sinewave |
|
Surge Suppression
|
Yes |
|
Surge Energy Rating
|
480 Joules |
|
Efficiency
|
98% |
| Battery | |
|
Technology
|
Lead acid |
|
Run Time (Up To)
|
5.3 min at full load 14.8 min at half load |
|
Recharge Time
|
3 hours |
|
Features
|
Maintenance free, sealed, leak-proof |
| Networking | |
|
Remote Management Interface
|
Ethernet 10/100, USB |
| Expansion / Connectivity | |
|
Interfaces
|
1 x management (Ethernet) - RJ-45 1 x management (USB) - 4 pin USB Type B 1 x EPO (emergency power off) 1 x serial - RJ-45 |
|
Expansion Slots
|
1 (total) / 1 (free) x SmartSlot |
| Miscellaneous | |
|
Features
|
Audible alarm, LCD display |
|
Compliant Standards
|
C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC |
| Environmental Parameters | |
|
Min Operating Temperature
|
32 °F |
|
Max Operating Temperature
|
104 °F |
|
Humidity Range Operating
|
0 - 95% (non-condensing) |
|
Sound Emission
|
55 dBA |
| Dimensions & Weight | |
|
Width
|
17 in |
|
Depth
|
28.1 in |
|
Height
|
10.4 in |
|
Weight
|
246.52 lbs |
| Dimensions & Weight (Shipping) | |
|
Shipping Width
|
23.6 in |
|
Shipping Depth
|
3.3 ft |
|
Shipping Height
|
18.1 in |
|
Shipping Weight
|
286.6 lbs |
